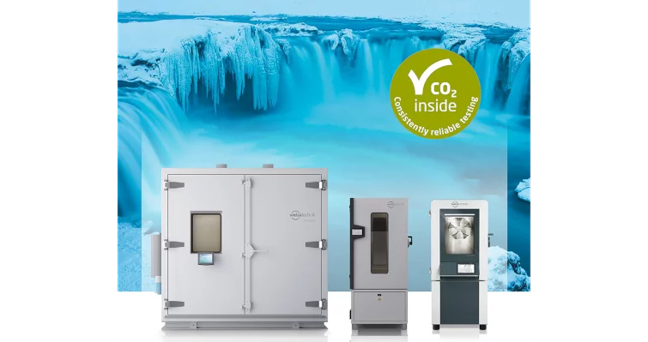

The ClimeEvent now also with climate-friendly refrigerant CO2 (R744).
Our single-stage systems (down to -40°C) are equipped with the innovative CO2 refrigeration technology (GWP <1).
- GWP = 1 – future-proof testing!
- Our CO2 systems provide powerful cooling down to -50°C.
- No changes to the infrastructure necessary.
- Compared to single-stage units (down to -40°C), often lower investment and operating costs.
- Lower energy consumption, with ramp programmes between 120 °C and -40 °C.
- For example, a CO2 test chamber consumes up to 30 % less energy than a cascade.
- Significantly reduced sound pressure level.
Automotive: Demanding climate tests such as those from LV124 or general standards such as the IEC 60068 series pose no challenges for our test chambers. Not even in the field of e-mobility.
Electronics: Our test chambers are designed for a wide range of tests in the electronics industry and easily master these specific requirements; e.g. low-silicone test chamber.
5G and autonomous driving: There are often very specific requirements in this area. Special adaptations enable testing in the EMC area or of lidar sensors.
Aeropace and defence: In this area, extreme demands are often placed on the product. Our chambers can be used to test corresponding standards from the aerospace or defence sector.
Consumer products: Consumer and luxury goods must also be tested. These sometimes pose special challenges for the test chambers, such as tests with leather, which introduces highly corrosive outgassing into the test chamber. Here too, we have already provided solutions for our customers on several occasions.
Special applications
Lithium ions: Rechargeable batteries are installed in many devices these days, and e-mobility is also leading to an increased number of tests with batteries. To ensure that you can test these test items safely, our test chambers are equipped with a tested safety system based on the EUCAR Hazard Level System, which extends up to Hazard Level 7.
ATEX: Many test items use flammable substances as lubricants or operating fluids. A risk assessment is required in order to be able to test safely even in the event of a leak in the test material. If necessary, measures must be taken at the test chamber. We offer you advisory support and equip your test chamber with a tested safety concept.
ESD: Some test items are very sensitive to electrostatic charge. The test chambers can be equipped accordingly to prevent this from happening in the test chamber, for example through air movement. From the earthing point to the shielding of all installed components.
EMC: The test chambers must be specially shielded to ensure that no signals are emitted from the test object into the environment or affect your test object. We have many years of experience in the construction of test chambers for EMC tests.

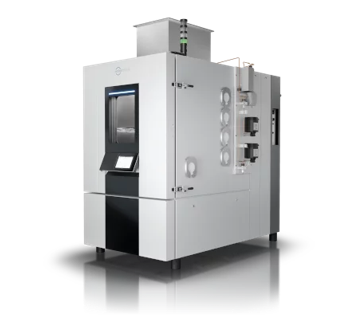

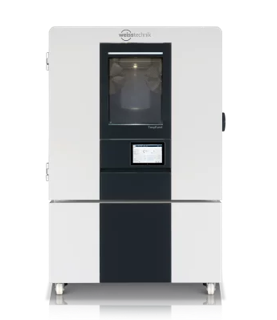

Stress screening test chambers for temperature and climatic tests
The Reach-In temperature and climate test chambers for stress screening tests are available as standard in the performance classes 10 K/min to 25 K/min. The ideal test chamber for the test specimen can be selected from sizes ranging from 270 to 1300 liters. Our ESS test chambers are specially developed for fast temperature cycles and moist heat tests and are used primarily in safety-critical sectors such as the aerospace, automotive, medical technology and defense industries.
